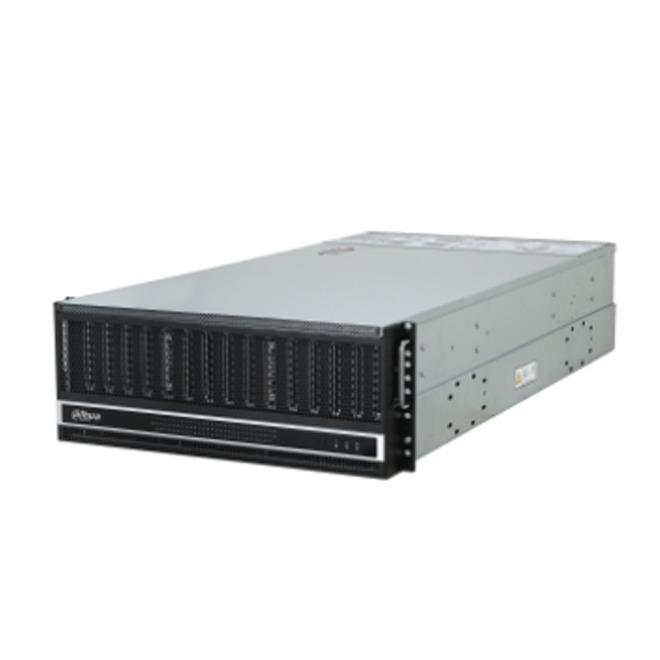

Storage Server EVS7285S

Server

Brand: Dahua

SKU: sds

Warranty: Local seller warranty

85-bay Embedded Video Storage

> 64-bit high-performance multi-core processor.
> Max 1024-ch IP camera inputs.
> Max 2048 Mbps incoming/recording/forwarding bandwidth.
> 85 HDDs, SAS/SATA, Hot-Swap.
> Supports RAID 0/1/5/6/10/50/60, JRAID, JBOD, Hot spare.
> Supports video stream direct storage mode and IPSAN storage mode.
> Supports N+M cluster.
> Supports Automatic Network Replenishment (ANR).
> Modular and drawer-like design.
> 2+1 redundant 80PLUS platinum power supply.

Home Delivery: 5 - 10 Days

Cash on Delivery Available

Seller by: S. DIGITAL SERVICE CO. LTD

Go To Store

Availability: 0 in stock

Tk.0

Quantity

Out of Stock

Add to Wishlist

Description

System

Main Processor

64-bit multi-core processor

Operating System

Embedded Linux

Operation Interface

Web

Controller

Single controller

RAM

16 GB, expandable up to 128 GB

Redundant Power

2+1

System

Network Port

1×1GbE management port; 4×1GbE LAN ports

USB

2×USB3.0

eSATA

1×eSATA

RS-232

1×DB9

Internal Interface

M.2 SSD Port

2×NVMe SSD ports

PCI-E Port

2×PCI-E X8

Disk

Number of Disk

Disk Compatibility

1 TB; 2 TB; 3 TB; 4 TB; 6 TB; 8 TB; 10 TB; 12 TB; 14 TB; 16 TB; 18TB
2.5-inch and 3.5-inch HDD
Support simultaneously connectng to SATA/SAS/SSD

Installation

Independent disk tray

Hot Swapping

Yes

Disk Mode

RAID 0/1/5/6/10/50/60; JRAID; JBOD; hot-spare

Disk Management

Non-working disks automatic sleep

Disk Processing

Bad sector mapping

Disk Status Detection

Inspection before use and during use

Performance

Video Direct Storage

(Private Protocol)

Up to 1024-channel (2048 Mbps) access, storage, and forwarding; 32-channel (64 Mbps) online playback

Video Direct Storage (Onvif)

Up to 1024-channel (2048 Mbps) access, storage, and forwarding; 32-channel (64 Mbps) online playback

Video Direct Storage

(Auto Register)

Up to 1024-channel (2048 Mbps) access, storage, and forwarding; 32-channel (64 Mbps) online playback

Picture Direct Storage

Up to 1024-channel access, storage, and forwarding (250 KB/Picture)

IPSAN Performance

Write-through: 900 Mbps
Write-back: 1,200 Mbps

Function

IPSAN Mode

Yes

IPSAN Function

Dynamic online extension of logic volumes

Video Stream Mode

Direct storage

Network Protocol

RTP; RTCP; RTSP; UDP; HTTP; NTP; SNMP; iSCSI; SMB; NFS; FTP

Streaming Media Protocol

ONVIF 19.12

Cluster Service

N+M

Automatic Network Replenishment (ANR)

Videos during network failure upload to EVS automatically afterwards

Network Mode

Link Aggregation, Fault-Tolerance, Load Balance

Quick RAID

Yes

RAID Instant Use

Yes

RAID Rebuild

Self-adaptive rebuilding

RAID-Write Synchronization

Yes

Record Mode

Scheduled, manual, motion-triggered and alarm
triggered

Recording Playback

Web playback, concentrated playback, slice playback, synchronous playback
Search video by second
Adjustable playback speed

Recording Backup

Back up video through USB, network, and eSATA

AI by Camera

Access by cameras with encoding formats of MPEG4, MJPEG, H.264, H.265, and SVAC
Access by mult-sensor cameras, thermal cameras, and panoramic cameras

General

Power Supply

100-127 V/200-240 V AC, 50/60 Hz, 16 A/8 A

Fan

Intelligent speed regulation and hot swapping

Power Consumption

﹤ 1600 W (include disks)

Operating Temperature

0 °C to +35 °C (+32 °F to +95 °F)

Operating Humidity

10%–80% (RH) (non-condensation)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

5%–90% (RH) (non-condensation)

Operating Altitude

≤3000 m (9842.52 ft)

Certifications

CE: EN 55024; EN 55032; EN 55035; EN 50130-4; EN 61000-3-2; EN 61000-3-3; EN 62368
FCC: ANSI C63.4, 47 CFR PART 15B Subpart B"

Case

Product Dimensions

With hanger: 482.6 mm x 177 mm x 932.9 mm (19"" × 6.96"" × 36.73"") (W × H × D)
Without hanger: 446 mm x 177 mm x 932.9 mm (17.56"" × 6.96"" × 36.73"") (W × H × D)

Net Weight

55.2 kg (121.70 lb)

Gross Weight

75 kg (165.35 lb)

Installation

Standard 19 inch rack, with slide rail
