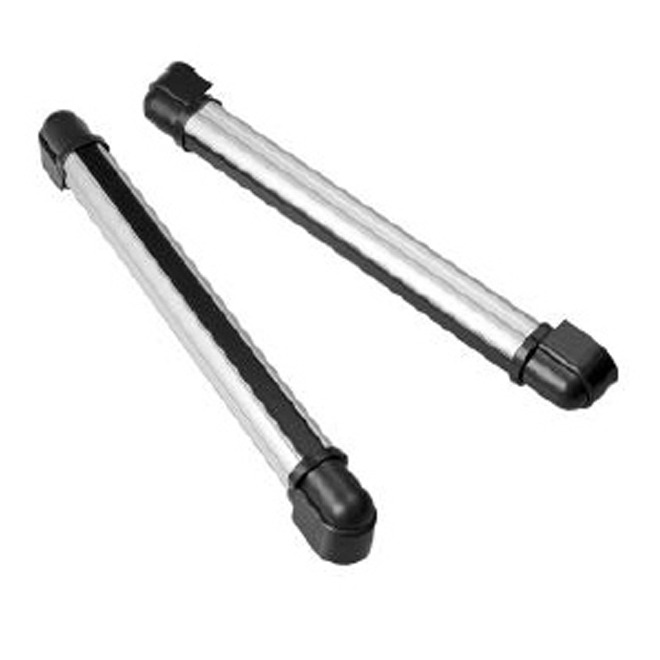

Fence Security System

Sensor Based Security System

Brand: Safe1

SKU: Beam Barrier

Warranty: Local seller warranty

Main Feature

Alarm output NC/NO optional, compatible with other brand burglar alarm systems
Resistant to rain, fog, snow and frost
Infrared LED lighting
PC engineering plastic material
Built-in automatic adjustable strong light filtering system (up to 50,000 LUX), Good performance against direct sunlight, completely against fluorescent and car light
AGC circuit, the detector will automatically increase sensitivity when faced harsh environment
Horizontal / vertical optical angle can be easy to adjust

Home Delivery: 5 - 10 Days

Cash on Delivery Available

Availability: 0 in stock

Tk.5,500

Out of Stock

Add to Wishlist

Parameters

Model		BD80MS1
Brand		Safe1
Detection Range	Outdoor	80 M
	Indoor	90 M
Number of beams		2 beams
Detection Method		Simultaneous blocking of 2 infrared beams
Interruption Time		50msec, 150msec,300msec,500msec (selectable)
Beam frequency		8 channel selectable
Power Supply		DC10~36V; AC8~24V
Current Consumption		50mA max
LED		Red LED Alarm(receiver), Digtal LED Display
Alarm Output		Form C, Contact capacity: AC / DC30V, 0.5A or less
Tamper Switch		N.C., open when cover is removed
Fault Alarm(optional)		N.C Fault Output when the signal is incompetent
Operating Temperature		-25℃ to +55℃
Environment Humidity		95% max
Alignment Angle		Horizontal 180°(±90°), Vertical 20°(±10°)
Mounting		Wall or Pole
Protection Degree		IP66
Material		PC engineering plastic
Dimension (LWH)		2208075mm
Weight (Transimtter and Receiver)		900g
Attachments	U bracket	2pcs, 70.437.521.5mm, δ=1.5mm, stainless steel
	Pole mounting srew	Pole mounting screws: 4pcs, PM430mm Wall mounting screws: 4pcs, PM425mm
	Installation manual	1
Spiral Terminal Dedew and Defrost Method		Heaters(need to purchase separately)
Note: When environment termperature lower than -20℃, please use heaters to ensure normal working. Heater is non-polarized.
